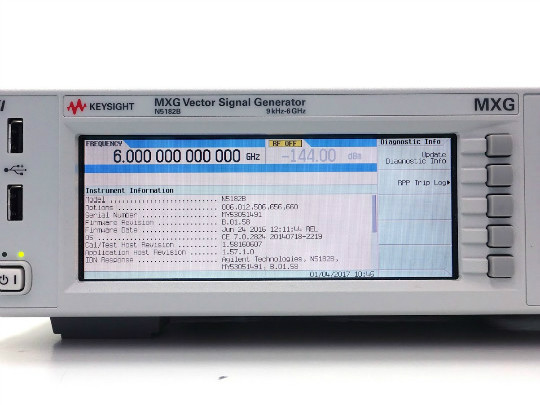

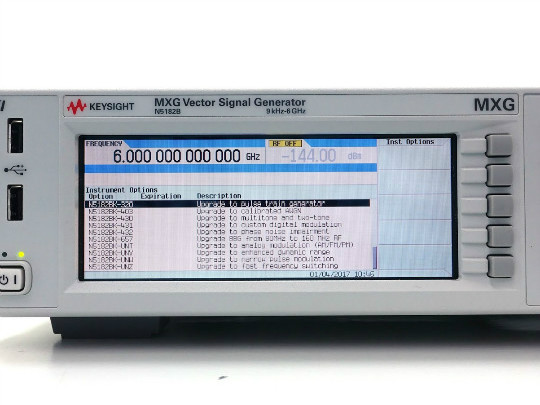

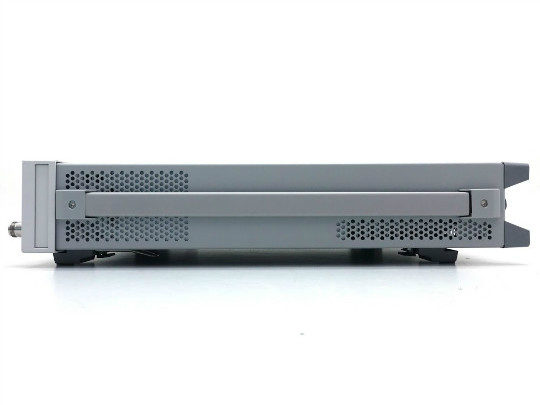

N5182B MXG X 系列射頻矢量信號發生器
主要特性和功能
主要特性和功能
- 出色的硬件性能可以提升您的設計性能，包括優異的相位噪聲和雜散特征
- 利用優異的 ACPR 和輸出功率，驅動功率放大器并表征非線性特性
- 經工廠均衡的 160 MHz 射頻帶寬可以更好地測試寬帶器件
- 利用 Signal Studio 軟件縮短生成信號所需的時間，包括 LTE、WLAN 和 GNSS
- 3 年校準周期和全面的自我維護解決方案確保降低您的擁有成本
| Frequency Range | |||
| N5182B-503 | 9 kHz 至 3 GHz 頻率范圍
|
||
| N5182B-506 | 9 kHz 至 6 GHz 頻率范圍
|
||
| Connector Configuration | |||

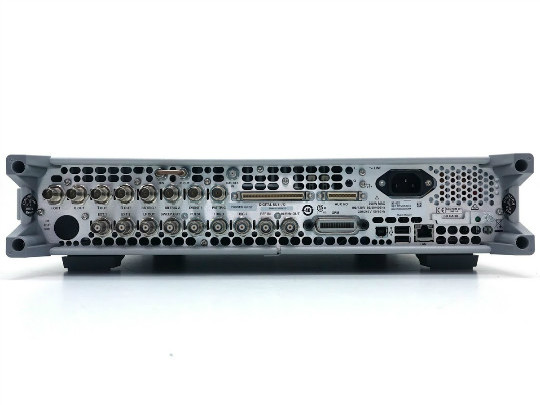

| N5182B-1EM | 將所有連接器移至后面板
|
||
| General Performance Features | |||
| N5182B-UNZ | 快速切換
|
||
| N5182B-UNX | 低相位噪聲
|
||
| N5182B-UNY | 增強的超低相位噪聲性能
|
||
| N5182B-1EA | 大輸出功率
|
||
| N5182B-1EQ | 小功率，< -110 dBm
|
||
| N5182B-1ER | 靈活的參考輸入（1 - 50 MHz）
|
||
| N5182B-302 | Avionics License
|
||
| N5182B-099 | 期限延長的許可證密匙升級能力
|
||
| Vector System Features | |||
| N5182B-UNV | 增強的動態范圍
|
||
| N5182B-660 | 升級基帶信號發生器，增加實時能力
|
||
| N5182B-657 | 基帶信號發生器的射頻帶寬從 80 MHz 升級至 160 MHz
|
||
| N5182B-656 | ARB 基帶信號發生器（80 MHz 射頻帶寬，32 Msa）
|
||
| N5182B-1EL | 差分 I/Q 輸出
|
||
| N5182B-023 | Upgrade baseband generator memory from 32 Msa to 1 Gsa | ||
| N5182B-022 | Upgrade baseband generator memory from 32 Msa to 512 Msa | ||
| N5182B-UN7 | 內置比特誤碼率分析儀，固定許可證
|
||
| Analog Modulation | |||
| N5182B-303 | 多功能函數發生器
|
||
| N5182B-320 | 脈沖序列發生器、固定許可證
|
||
| N5182B-UNT | 調幅、調頻、相位調制
|
||
| N5182B-UNW | 窄脈沖調制
|
||
| Vector Firmware Applications | |||
| N5182B-004 | 數字輸入端口可與 N5102A 連接
|
||
| N5182B-003 | 數字輸出端口可與 N5102A 連接
|
||
| N5182B-432 | 相位噪聲減損
|
||
| N5182B-431 | 定制設計調制
|
||
| N5182B-430 | 多音頻和雙音頻
|
||
| N5182B-403 | 經過校準的 AWGN
|
||
| Additional Features | |||
| N5182B-006 | 儀器安全特性和可拆卸存儲卡
|
||
| N5182B-009 | Internal solid state memory | ||
| N5182B-012 | 用于相位相干的 LO 輸入/輸出
|
||
| Calibration Documentation | |||
| N5182B-UK6 | Commercial calibration certificate with test data | ||
| N5182B-A6J | ANSI Z540-1-1994 校準
|
||
| N5182B-AMG | 校準 + 不確定度 + 保護頻段（認證）
|
||
| Waveform 5-pack Licenses | |||
| N5182B-229 | Waveform license 5-pack9 | ||
| N5182B-228 | Waveform license 5-pack8 | ||
| N5182B-227 | Waveform license 5-pack7 | ||
| N5182B-226 | Waveform license 5-pack6 | ||
| N5182B-225 | Waveform license 5-pack5 | ||
| N5182B-224 | Waveform license 5-pack4 | ||
| N5182B-223 | Waveform license 5-pack3 | ||
| N5182B-222 | Waveform license 5-pack2 | ||
| N5182B-221 | 5 種波形一組的波形許可證
|
||
| Waveform 50-pack Licenses | |||
| N5182B-259 | Waveform license 50-pack10 | ||
| N5182B-258 | Waveform license 50-pack9 | ||
| N5182B-257 | Waveform license 50-pack8 | ||
| N5182B-256 | Waveform license 50-pack7 | ||
| N5182B-255 | Waveform license 50-pack6 | ||
| N5182B-254 | Waveform license 50-pack5 | ||
| N5182B-253 | Waveform license 50-pack4 | ||
| N5182B-252 | Waveform license 50-pack3 | ||
| N5182B-251 | Waveform license 50-pack2 | ||
| N5182B-250 | 50 種波形一組的波形許可證
|
||
| Accessories | |||
| 1CN106A | Handle kit 88.1mm H (2U) - two front handles, Palette 2015 | ||
| N5182B-AXT | Hard transit case | ||
| 1CP104A | Rack mount flange and handle kit 88.1mm H (2U) - brackets, handles, hole plugs, Palette 2015 | ||
| 1CR112A | Rack Slide Kit, Mounting lengths 279.4-406.4mm, Palette 2015 | ||
| 1CM110A | Rack mount flange kit 88.1mm H (2U) - two flange brackets, four hole plugs, Palette 2015 | ||
| 1CM010A | Rackmount Flange Kit 88.1mm H (2U) - Two Flange Brackets, Four Hole Plugs | ||
| 1CN006A | 把手套件 88.1 毫米（高）（2U）－－兩個前把手 | ||
| 1CP004A | Rackmount Flange and Handle Kit 88.1mm H (2U) - Brackets, Handles, Hole Plugs | ||
| 1CR012A | Rack Slide Kit, Mounting lengths 279.4-406.4mm | ||
| Documentation | |||
| N5182B-ABJ | Japan - Japanese printed users guide | ||
| Signal Creation Software | |||
| N6171A | MATLAB 軟件 | ||
| N7600B | Signal Studio for W-CDMA/HSPA+ | ||
| N7601B | Signal Studio for cdma2000/1xEV-DO | ||
| N7602B | Signal Studio for GSM/EDGE/Evo | ||
| N7605B | Signal Studio for Real-Time Fading | ||
| N7606B | Signal Studio for Bluetooth | ||
| N7607B | Signal Studio for DFS Radar Profiles | ||
| N7608B | Signal Studio 定制調制軟件
|
||
| N7609B | Signal Studio for Global Navigation Satellite Systems (GNSS) | ||
| N7610B | Signal Studio for Short Range Communications | ||
| N7611B | Signal Studio for Broadcast Radio | ||
| N7612B | Signal Studio for TD-SCDMA/HSPA | ||
| N7614B | Signal Studio 功率放大器測試軟件
|
||
| N7615B | Signal Studio for Mobile WiMAX | ||
| N7617B | 適用于 WLAN 802.11a/b/g/j/p/n/ac/ah 的 Signal Studio 軟件
|
||
| N7620B | Signal Studio for Pulse Building | ||
| N7621B | Signal Studio for Multitone Distortion | ||
| N7623B | Signal Studio for Digital Video | ||
| N7624B | Signal Studio for LTE / LTE-Advanced / LTE-Advanced Pro FDD 信號生成軟件 | ||
| N7625B | Signal Studio for LTE / LTE-Advanced TDD 信號生成軟件 | ||
| 頻率 | 9 kHz 至 6 GHz |
|---|---|
| 性能水平 | ◆◆◆◆◇◇ |
| 1 GHz 時的輸出功率 | -144 dBm 至 +26 dBm |
| 1 GHz 時，20 kHz 頻偏處的相位噪聲 | -146 dBc/Hz |
| 頻率轉換 | ≤ 800 µs |
| 1 GHz 時的諧波 | <-35 dBc |
| IQ 內部/外部調制帶寬 | 160 MHz 至 200 MHz |
| 1 GHz 時的非諧波 | -96 dBc |
| 掃描模式 |
|
| 基帶發生器模式 | 波形回放和實時 |
| 軟件——通用 |
|
| 軟件——蜂窩/無線連通性 |
|
| 軟件——音頻/視頻廣播 |
|
| 軟件——檢測/定位/跟蹤/導航 |
|
| 波形回放存儲器 | 1024 Msa |
| 1 GHz 時的頻率調制大偏移 | 4 MHz |
| 100 kHz 頻偏時的頻率調制率 | 直流至 7 MHz |
| 普通模式下的相位調制大偏移 | 0.5 rad 至 8 rad |
| 高帶寬模式下的相位調制大偏移 | 0.05 rad 至 0.8 rad |
| 幅度調制大深度 | 100% |
| 幅度調制率 |
0 至 50 kHz |
| 可用應用 | 是 |
| 矢量 | 是 |
